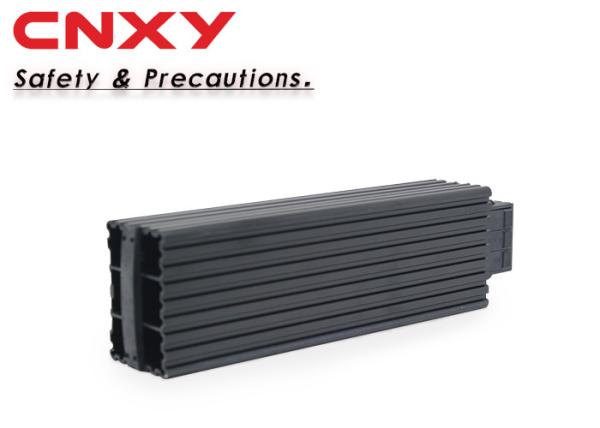

Metal Din Rail Small Semiconductor Heater PTC Heating Element RoHS Standard

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature must be maintained above a minimum value. The aluminum profile heater body design has a chimney effect to distribute heat evenly. The cage clamp connectors save time and simplify installation.

• Operating voltage: 120-240V AC/DC (min. 110V, max. 265V)
• Connection casing: plastic, UL 94V-0, black
• Temperature range: 0~60℃/-20~+80℃
• Mounting: clip for 35mm DIN rail, EN 60 715
• Protection type: IP20
• Size: H*W*D 220*70*60mm
• Weight : 0.4KG

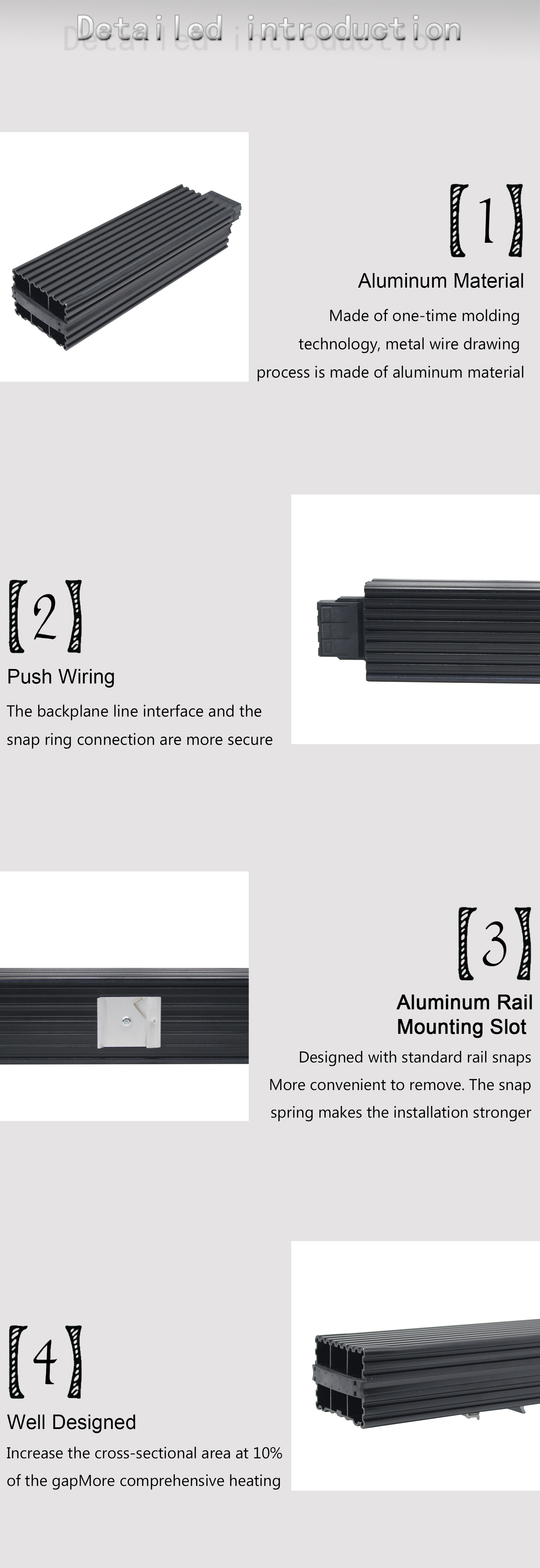

Detail introduction

• Heat and dehumidify: prevents forming condensation for sudden drop of temperature to in the cabinet.
• Adopt cyclic heating technology to heat,faster, at the same time there is temperature protection device to keep the heating safe and stable.
• With primary forming technology, metal drawing technology,aluminum processing.
• There is firmer cable connection with clasp ring on the bottom interface.
• Din rail mounting design, easy to disassemble,and the crank spring makes the installation firm.
• he well-designed 10 % increasing of the cross-sectional area of the gap makes the heating more comprehensive.

Advantage

• Compact size
• Wide voltage range
• Heating power adjusts to ambient temperature
• Cage clamp connectors for quick & easy wiring
• DIN rail mountable
